ENGLISH

Using the Optional SP01 “Spider” Shock-Mount

Using the Optional SP01 Shock-Mount

For additional isolation the C03U can be

fitted on the optional SP01 “Spider” shock

mount. Follow the steps below the to install

the SP01.

• First, screw the SP01 shock mount onto

your mic stand or boom arm. If you’re

using a US 5/8” mic stand or boom,

remove the Euro adapter.

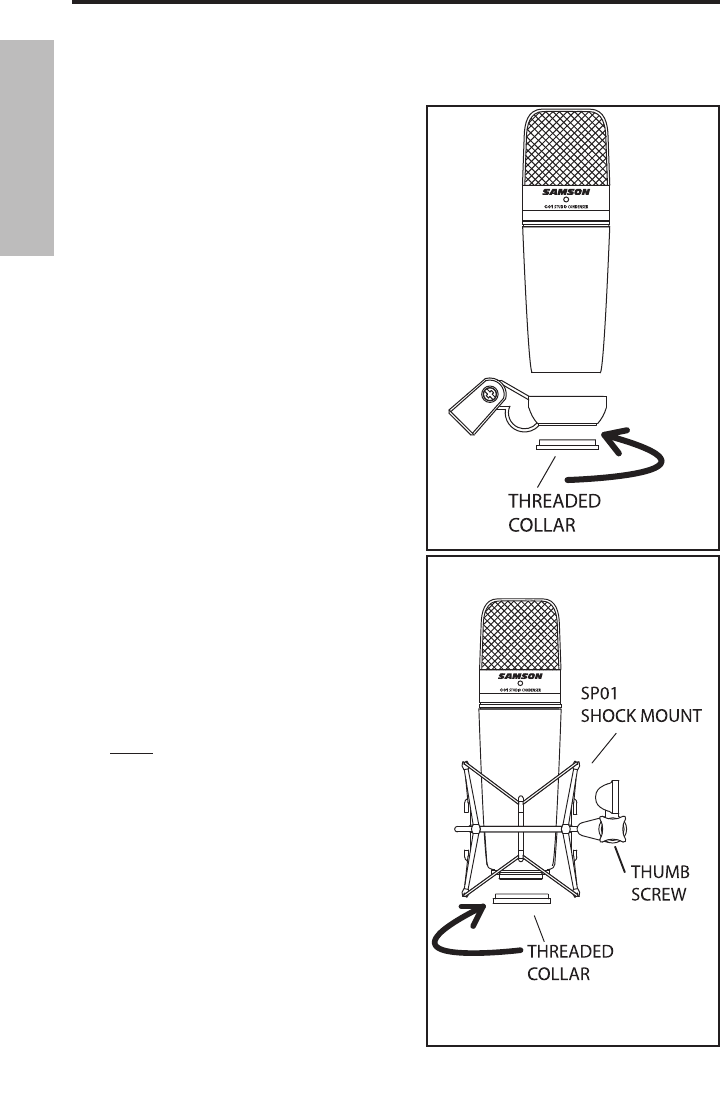

• Remove the C03U swivel mount by

rotating the threaded collar counter-

clockwise as shown in figure 1.

• Install the C03U into the SP01 by fitting

the microphone into the center of the

web, positioning the C03U onto the bot-

tom mounting plate.

• Secure the SP01 by reinstalling the

threaded collar, rotating clockwise until

tight. (Figure 2)

• Now, loosen the thumb screw to adjust

the angle of the microphone and posi-

tion the C03U to the desired location.

Once set, tighten the thumbscrew to

secure the microphone in place.

Note: Be careful not to cross thread

or over tighten the threaded collar or

thumb screw.
